Conveyor Belt Cleaning Systems
ASAS Technologies Company provides high-performance conveyor belt cleaning systems engineered to reduce material carryback, minimize maintenance requirements, and improve conveyor operational efficiency. Material carryback and belt contamination can lead to excessive maintenance, material loss, conveyor damage, and reduced operational efficiency. ASAS Technologies Company supplies advanced conveyor belt cleaning systems designed to maintain cleaner belts, improve conveyor reliability, and reduce operational downtime. Our belt cleaning solutions are suitable for primary, secondary, and internal cleaning applications under demanding industrial operating conditions.

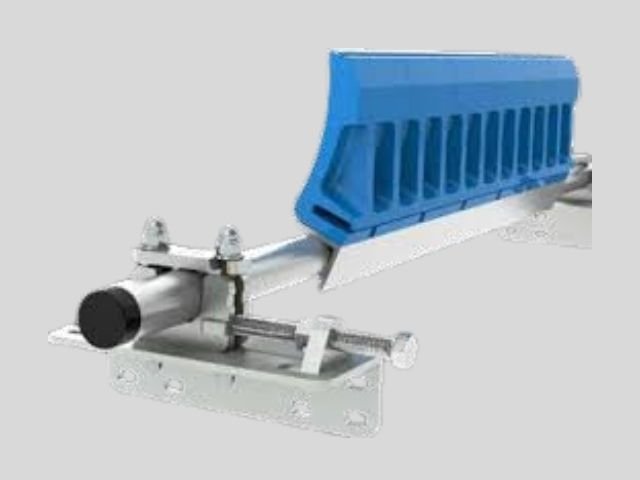

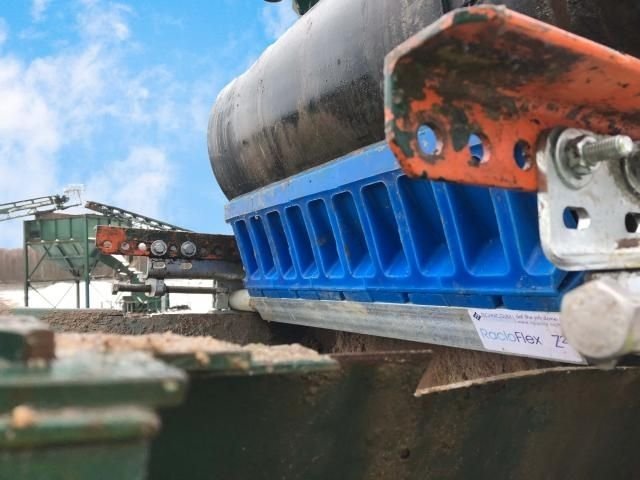

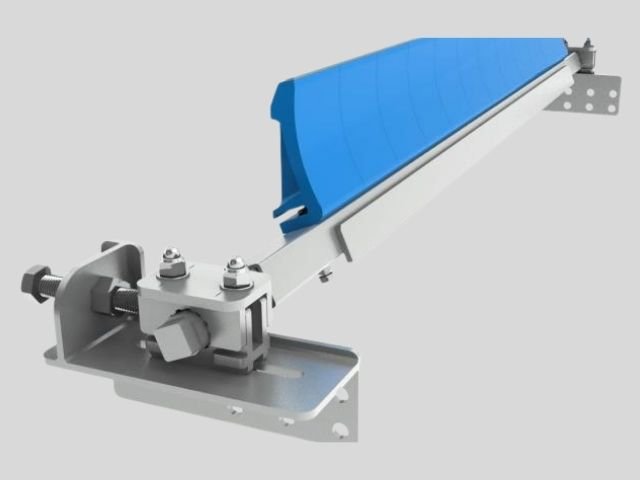

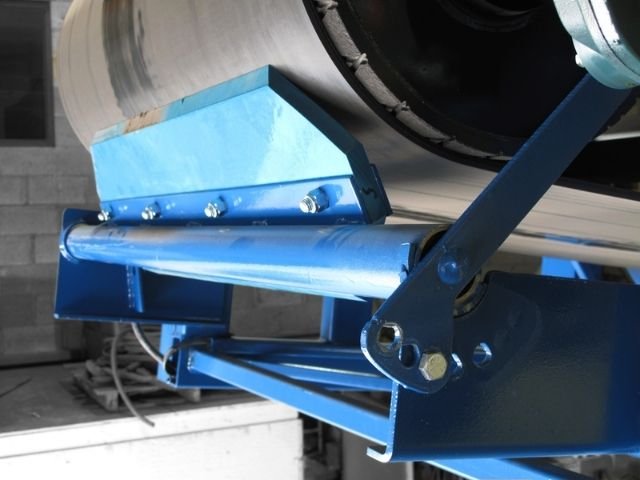

1. Primary RacloFlex™ Z2
Primary RacloFlex™ Z2 is a heavy-duty primary belt cleaner designed for efficient removal of bulk carryback material at the head pulley area.
Technical Specifications
- Blade Quality: Tungsten carbide : 93 HRA 3x15mm
Or- Tungsten carbide : 93 HRA 5x10mm
Or- Impact carbide : 66 HRA 5x10mm
Or- Wear resistant polyurethane : 25mm² svt - Working position: Scraping angle = 90° at tangent
- Surface treatment: All zinc-plated steel pieces + A2 grade Stainless bolts
- Maximum speed: Z² 1 way = 2 m/s
Z² -HD 1 way = 4 m/s
| Belt, mm | 400 | 500 | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 |
| Scraping width, mm | 378 | 504 | 630 | 756 | 882 | 1134 | 1268 | 1512 | 1638 | 1890 |
| Number of Blades | 3 | 4 | 5 | 6 | 7 | 9 | 10 | 12 | 13 | 15 |

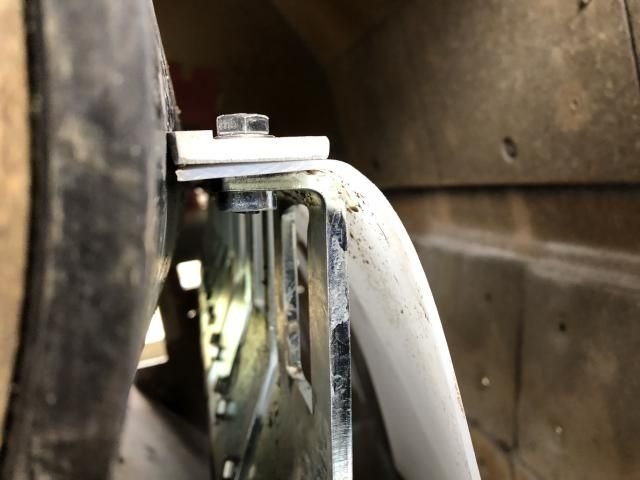

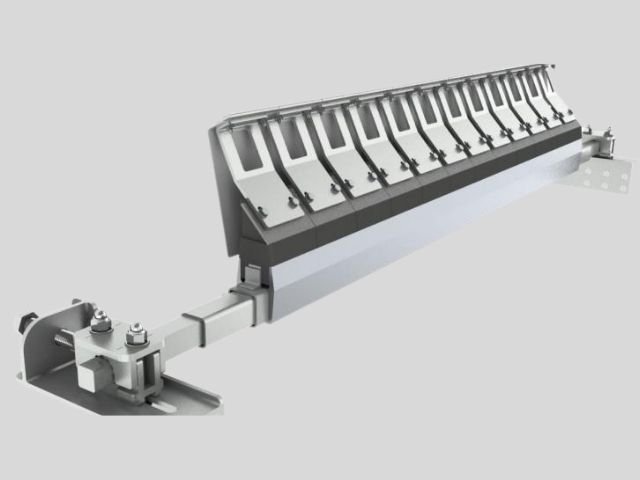

2. Primary RacloFlex™ NT
RacloFlex NT is comprised of blades each supported by a shock absorber block which can be adjusted independently to shape to the belt and compensate the faster wear of certain blades.
Technical Specifications
- Blade Quality: Tungsten carbide : 93 HRA 3x15mm
Or- Tungsten carbide : 93 HRA 5x10mm
Or- Impact carbide : 66 HRA 5x10mm
Or- Ceramic : Alumine frittée Al2O392% 10x15mm
Or- Stainless steel (316L/304L at choice) - Working position: Scraping angle = 90° at tangent
- Surface treatment: All electro-galvanized steel pieces + SS A2 bolts
- Maximum speed: NT 1 way = 2 m/s
NT -HD 4 way m/s
| Belt, mm | 400 | 500 | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 |
| Scraping width, mm | 378 | 504 | 630 | 756 | 882 | 1134 | 1240 | 1512 | 1638 | 1890 |
| Number of Blades | 3 | 4 | 5 | 6 | 7 | 9 | 10 | 12 | 13 | 15 |

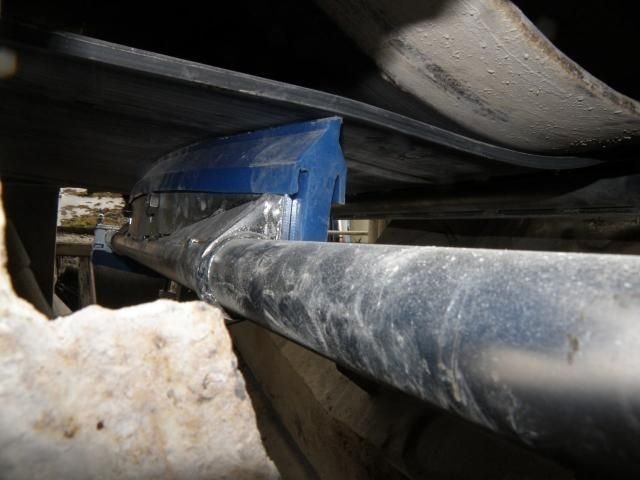

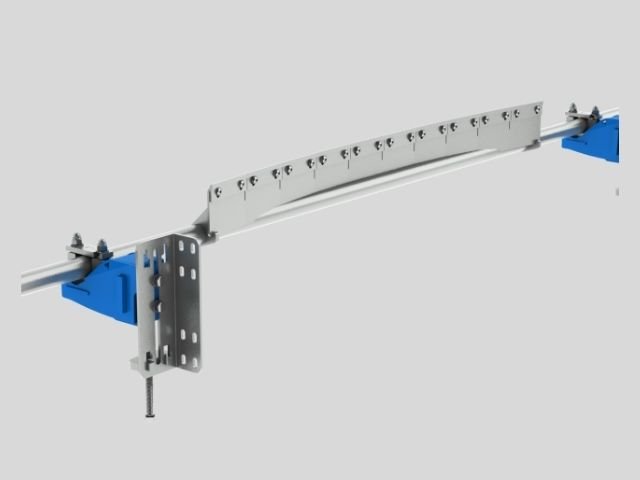

3. Secondary RacloFlex™ SW
Secondary RacloFlex™ SW is designed for secondary cleaning applications where finer residual carryback material removal is required after the primary cleaner stage.
Technical Specifications
- Blade Quality: Tungsten carbide : 93 HRA 3x15mm
Or- Tungsten carbide : 93 HRA 5x10mm
Or- Impact carbide : 66 HRA 5x10mm
Or- Wear resistant polyurethane : 25mm² svt - Working position: Scraping angle = 90° at tangent
- Surface treatment: All zinc-plated steel pieces + A2 SS
- Maximum speed: SW 1 way = 3 m/s
SW -HD 1 way = 5 m/s
| Belt, mm | 400 | 500 | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 |
| Scraping width SW, mm | 400 | 500 | 630 | 750 | 950 | 1150 | 1300 | ||||
| Tungsten width SW, mm | 315 | 395 | 570 | 648 | 800 | 960 | 1123 | ||||
| Scraping width SW-HD, mm | 950 | 1150 | 1300 | 1500 | 1700 | 1900 | 2100 | ||||
| Tungsten width SW-HD, mm | 840 | 1040 | 1200 | 1400 | 1600 | 1800 | 2000 |

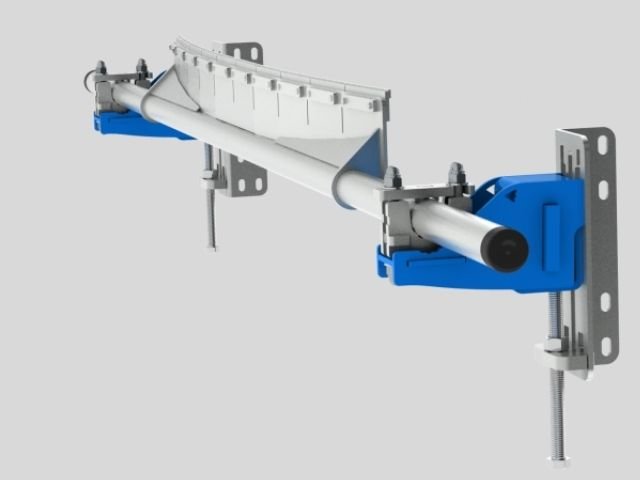

4. Secondary RacloFlex™ Metal
Secondary RacloFlex™ Metal is a segmented mono-blade secondary cleaner designed for efficient cleaning performance on belts with concentrated central material buildup.
Technical Specifications
- Blade Quality: Tungsten carbide : 93 HRA 3x15mm
Or- Tungsten carbide : 93 HRA 5x10mm - Working position: Scraping angle = 90° at tangent
- Surface treatment: All parts electro-plated or painted + A2 stainless steel bolts
- Maximum speed: metal = 3 m/s
Secondary scraper / with segmented mono-blade for belt
from 300 to 1200 mm
| Belt, mm | 300 | 400 | 500 | 650 | 800 | 1001 | 1002 | 1200 |
| Scraping width, mm | 252 | 378 | 504 | 630 | 756 | 882 | 1008 | 1134 |
For any request of a scraper to suit greater than 1200 mm belt, the scraper will be manufactured to order.

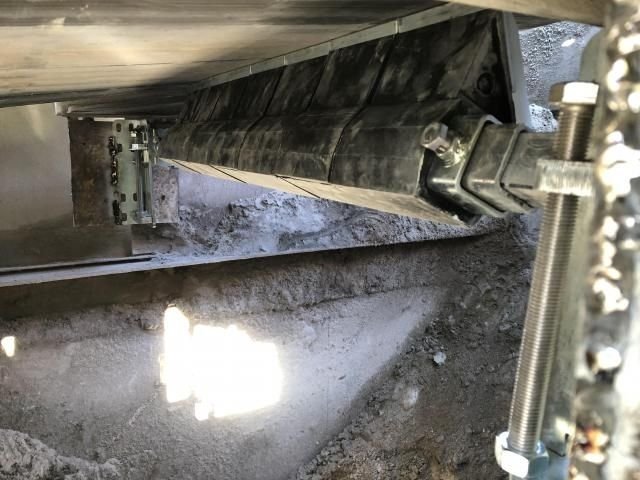

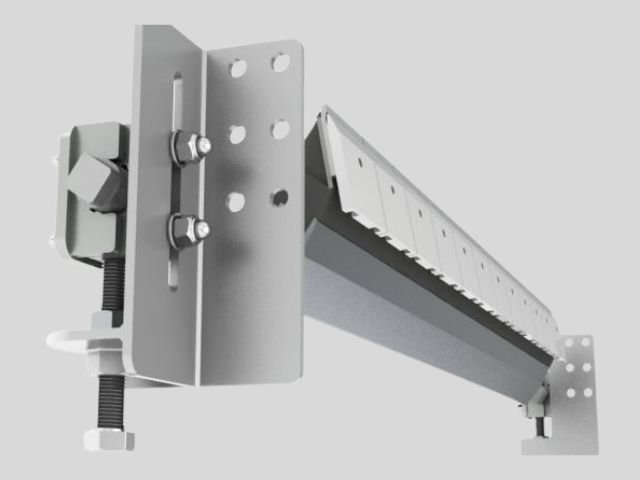

5. Secondary RacloFlex™ N
Secondary RacloFlex™ N is a versatile secondary belt cleaner designed for one-way and two-way conveyor belt cleaning applications.
Technical Specifications
- Blade Quality: Tungsten carbide : 93 HRA 3x15mm
Or- Tungsten carbide : 93 HRA 5x10mm
Or- Impact carbide : 66 HRA 5x10mm
Or- Ceramic : Alumine frittée Al2O392% 10x15mm
Or- Stainless steel (316L/304L at choice) - Working position: Scraping angle = 90° at tangent
- Surface treatment: All zinc-plated steel pieces + A2 grade Stainless bolts
- Maximum speed: N 1 way = 3 m/s 2 ways = 2,5 m/s
N -HD 1 way = 5 m/s 2 ways = 3,5 m/s
| Belt, mm | 400 | 500 | 650 | 800 | 1001 | 1002 | 1200 | 1401 | 1402 | 1600 | 1801 | 1802 | 2001 | 2002 |
| Scraping width, mm | 378 | 504 | 630 | 756 | 882 | 1008 | 1134 | 1260 | 1386 | 1512 | 1638 | 1764 | 1890 | 2016 |
| Number of blades | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |

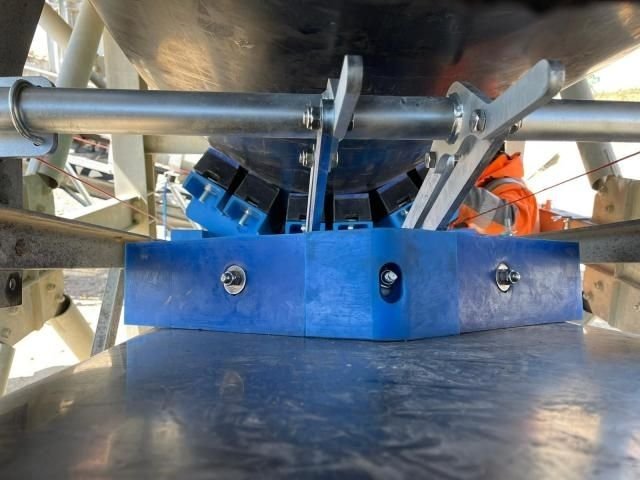

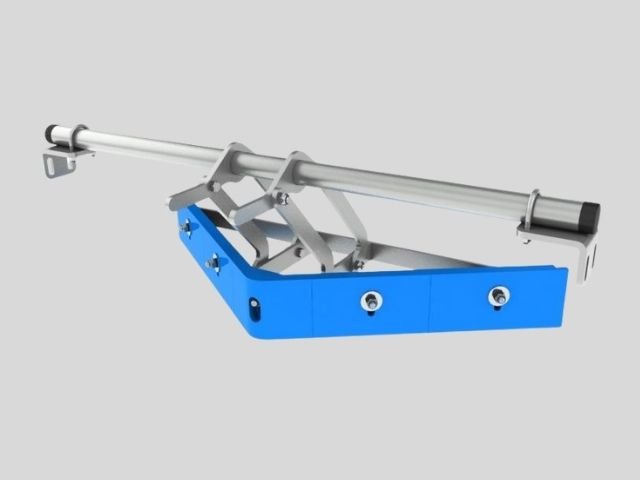

6. Internal RacloFlex™ VP
Internal RacloFlex™ VP is an internal belt cleaner equipped with high-resistance polyurethane blades designed for efficient internal conveyor cleaning operations.
Technical Specifications
- Quality of blade(s) : Wear resistant polyurethane : 25mm3 svt
- Working position : Oriented blade «pilot» behind support axle
- Surface treatment : All galvanised metal piece + SS hardware
- Temperature : -15° / + 50° C
- Scale of pH : 3 to 11
- Maximum speed : VP = 3 m/s 1 way
VP-HD = 5m/s 1 way
| Belt, mm | 500 | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 |
| Scraping width VP, mm | 550 | 685 | 950 | 1070 | 1320 | 1455 | ||||
| Scraping width VP-HD, mm | 1320 | 1455 | 1670 | 1840 | 2055 | 2230 |

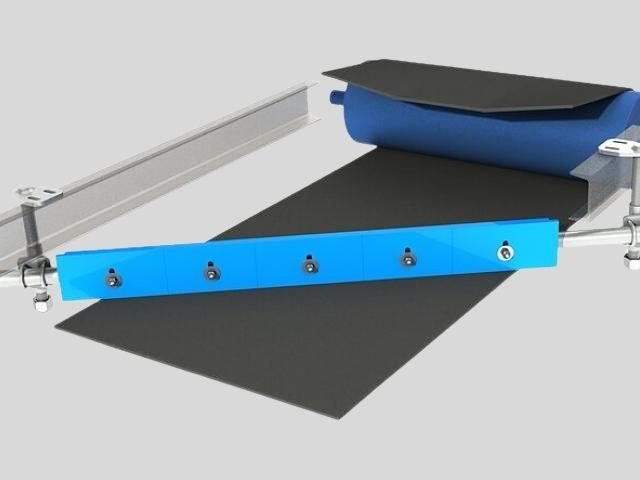

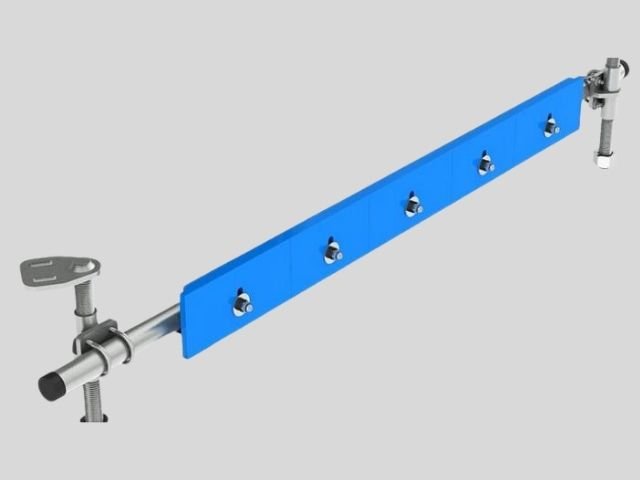

7. Internal RacloFlex™ DP
Internal RacloFlex™ DP is a two-directional belt cleaner designed for demanding conveyor applications requiring continuous blade contact and efficient internal cleaning performance.
Technical Specifications
- Quality of blade(s) : Wear resistant polyurethane : 25mm3
- Working position : Blade oriented at 35° to the structure / 90° to the belt
- Surface treatment : All electro-galvanised metal parts + stainless bolts
- Temperature : -15° / + 50° C
- Scale of pH : 3 to 11
- Maximum speed : DP = 3 m/s Works on two directions
DP-HD = 5 m/s Works on two directions
| Scraper, mm | 500 | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 |
| Scraping width DP, mm | 595 | 715 | 980 | 1105 | 1365 | 1490 | ||||
| Scraping width DP-HD, mm | 1755 | 1875 | 2140 | 2260 |
8. Scrapper Blades
ASAS Technologies Company supplies replacement scraper blades compatible with all RacloFlex™ belt cleaning systems.
Compatible Systems
- RacloFlex™ Z2
- RacloFlex™ SW
- RacloFlex™ Metal
- RacloFlex™ N
- RacloFlex™ NT
- RacloFlex™ VP
- RacloFlex™ DP

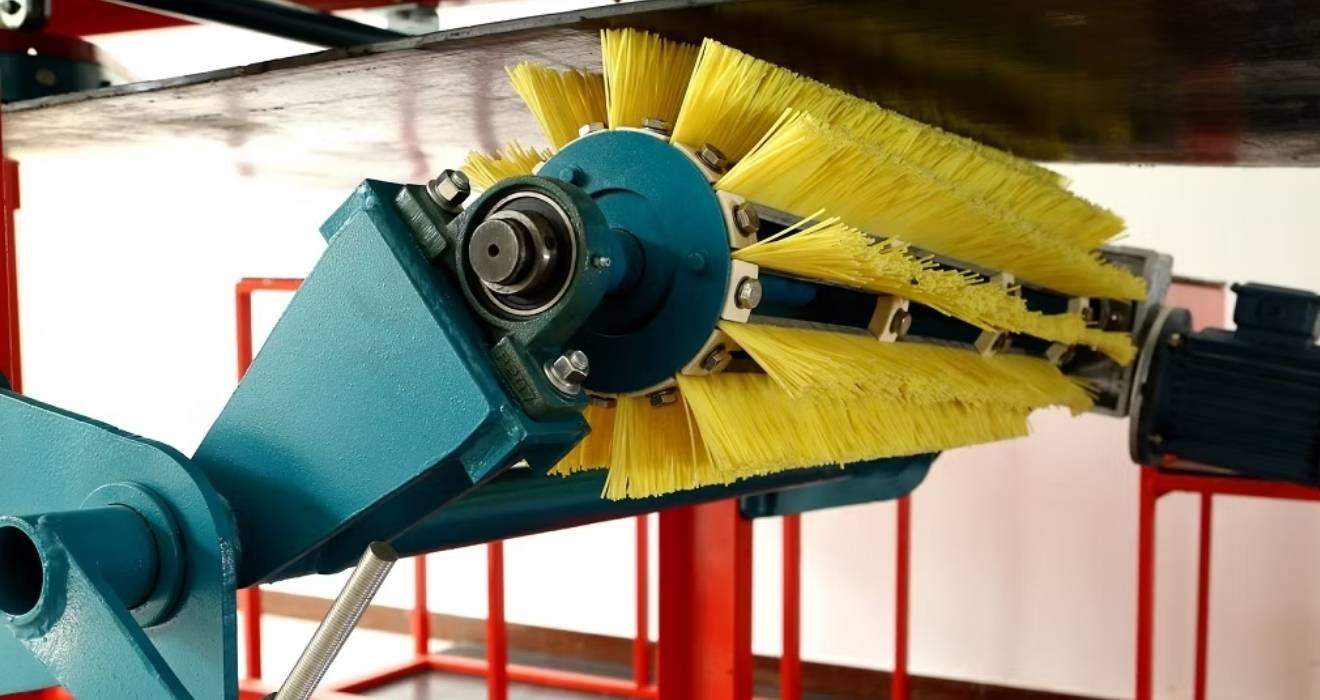

9. Brush Cleaner
Technical Range
| Belt width, mm | Length of brush, mm | Motor power | Speed rate |
|---|---|---|---|
| 500 | 500 | 0.75KW | 1/10 |
| 600 | 600 | ||
| 800 | 800 | 1.1KW | 1/10 |
| 1000 | 1000 | ||
| 1200 | 1200 | ||
| 1400 | 1400 | ||
| 1600 | 1600 | 2.2KW | 1/10 |
| 2000 | 2000 | ||
| 2200 | 2200 | ||
| 2400 | 2400 | 3.0KW | 1/10 |
