Conveyor Belt Alignment Systems
ASAS Technologies Company supplies advanced conveyor belt alignment systems engineered to maintain proper belt tracking, reduce conveyor belt misalignment, and improve operational reliability. Our belt alignment solutions are designed for demanding industrial applications including mining, cement, aggregate, power generation, ports, and bulk material handling systems.
Reliable Conveyor Belt Tracking Solutions
Conveyor belt misalignment can lead to excessive belt wear, material spillage, conveyor damage, and increased maintenance costs. ASAS Technologies Company provides professional belt alignment systems designed to maintain proper belt positioning and improve conveyor efficiency under heavy-duty operating conditions. Our alignment systems are suitable for both carrying and return conveyor belt applications and are designed for reliable long-term industrial performance.

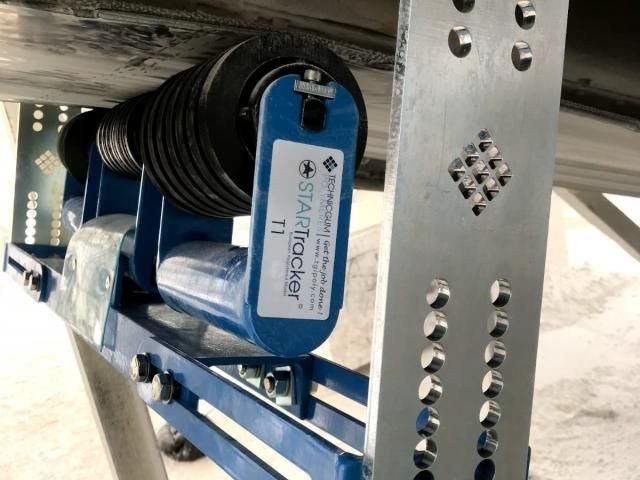

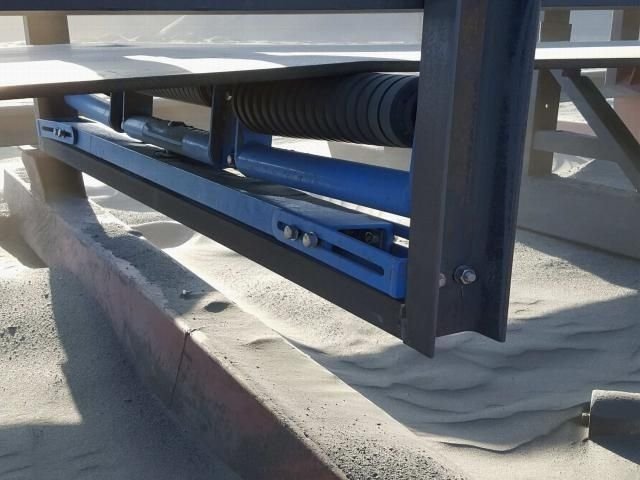

1. Star Tracker™ for Belt Alignment
An ingenious system to keep your belts tracked. The Star Tracker is the first self-tracker in the world. It is available in several models. The fully adjustable standard model is known as Star Tracker™. Compatible with SUPER-SCREW®*, ISC™, and FIX'N GO®
Technical Detail
| Belt, mm | 500 | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 |
| Flat return side |
Size 0 Long mode |
Size 1 Long mode |
Size 2 Long mode |
Size 3 Long mode |
Size 4 Long mode |
Size 5 Long mode |
Size 6 Long mode |
Size 7R Long mode |
| Trough superior part |
Size 1 Trough mode |
Size 2 Trough mode |
Size 3 Trough mode |
Size 4 Trough mode |
Size 5 Trough mode |
Size 6R Trough mode |
Size 7R Trough mode |

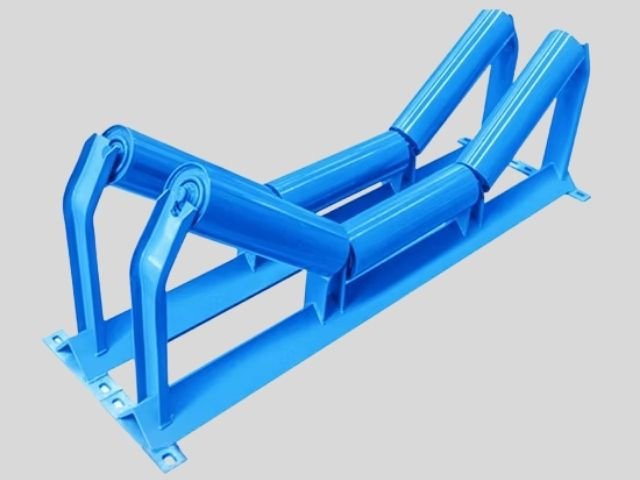

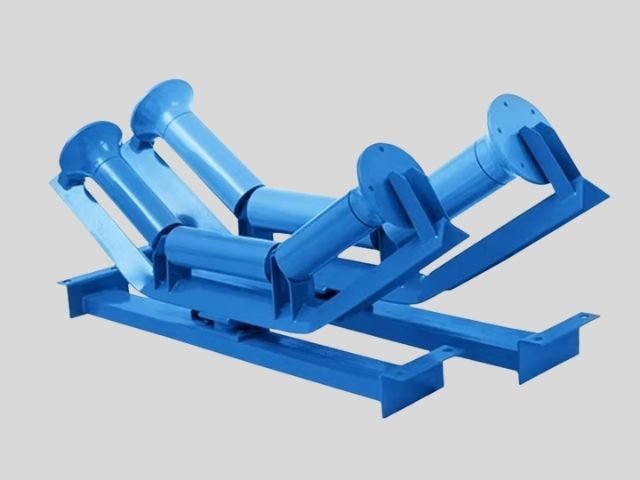

2. Self Aligning Rollers
Self Aligning Rollers are designed to maintain proper conveyor belt alignment on both carrying and return sides of the conveyor system. These rollers help minimize belt drift and improve conveyor operational stability.
Technical Specifications
- Roller Dia: 89,108, 133,159 ,180 mm
- Pipe Length: Customized
Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance. - Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal. Special design and particular labyrinthine seal style prevent the corrosion by impurity, water and air etc.
3. Vertical Guide Rollers
Vertical Guide Rollers are designed to control lateral conveyor belt movement and prevent excessive belt drift during operation. These rollers are commonly used where additional belt guidance is required.
Key Features
- Roller Dia: 63, 89, 108, 133 mm
- Pipe Length: Customized
- Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
- Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal. Special design and particular labyrinthine seal style prevent the corrosion by impurity, water and air etc

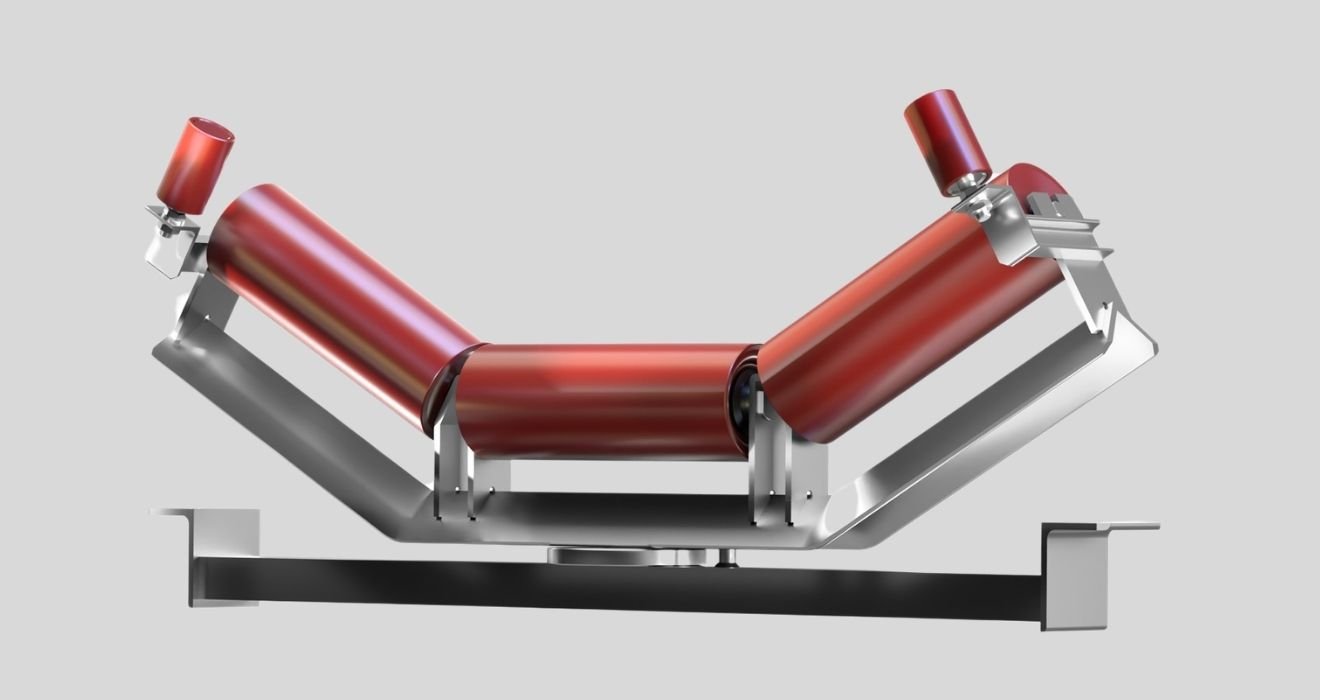

4. Self Aligning Roller Frames
Self Aligning Roller Frames are self-centralizing troughing systems designed to improve conveyor belt tracking and operational stability. The system allows controlled roller movement for automatic belt alignment correction.
Key Features
- Belt Width: 500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000 mm
- Both carrying and return frames can be manufactured as per drawings.
Note: Carrying rollers and guide rollers have to be ordered separately.
Advanced Conveyor Belt Alignment Solutions
ASAS Technologies Company delivers reliable conveyor belt alignment systems designed to improve conveyor stability, reduce belt damage, and enhance operational efficiency. Our belt tracking solutions provide dependable performance for demanding industrial conveyor applications across Saudi Arabia.
